Flexographic printing paste version of accuracy and efficiency of the production of a stable and efficient basis. Our company based flexographic printing paste version of technique and precision, combined with operational autonomy paste version of the design is more accuracy and stability of the paste version of machines.
1. Paste version of high precision

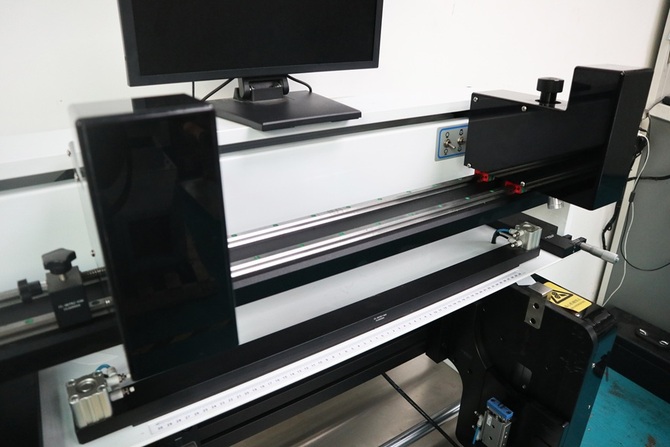

① using 19-inch LCD color display and high-definition CCD camera combination will be displayed at 20-150 times magnification position, in order to provide the basis for precise operation.
② right version of mechanical tuning organization, to be precise mobile plate and the base line, right place to ensure that each version of the same location and accuracy.
2. Paste version of high efficiency
① Move all the trajectories are using high-precision linear motion guide rail positioning, so that the operators have odd jobs and smooth.
② Advanced version designed to make paste operation is more simple, get rid of operators of skilled technical requirements, every one even new can in the shortest possible time, exact replicas paste version.
3. Manufacture sophisticated
Equipment of the main features a full aluminum alloy materials and solid design, CNC machining to ensure that production accuracy, trajectory part of the total mining are high-precision linear guide components constitute.
Technical Specifications：
Print roller length of 100-650mm
| No. | Project | Parameter |
| 1 | Roller Diameter | Φ55－Φ230mm |
| 2 | Roller Length | 100-650mm |
| 3 | Operating Voltage | 220V 50HZ |
| 4 | Total power | 250W |
| 5 | Weight | 130KG |
| 6 | Dimensions | 1020(L)X500(W)X1080(H) |
